Electronic-grade Chemical Vapor Deposition (CVD) diamond is a high-purity synthetic diamond produced through a process called chemical vapor deposition. It is characterized by its exceptional thermal conductivity, electrical insulation, and mechanical strength. Unlike natural diamonds, electronic-grade CVD diamonds are engineered to have minimal impurities and defects, making them ideal for advanced technological applications.
1.Electronics: CVD diamonds are used in high-power and high-frequency electronic devices due to their excellent thermal management properties. They help dissipate heat efficiently in semiconductors, lasers, and transistors.
2. Quantum Computing: The unique properties of CVD diamonds, such as nitrogen-vacancy (NV) centers, make them suitable for quantum sensors and qubits in quantum computing.
3. Optics: CVD diamonds are used in high-performance optical windows and lenses, especially in harsh environments, due to their transparency and durability.
4. Industrial Tools:They are employed in cutting, grinding, and drilling tools, offering superior wear resistance and longevity.
5. Medical Devices: CVD diamonds are used in surgical tools and radiation detectors, benefiting from their biocompatibility and precision.
In summary, electronic-grade CVD diamond is a versatile material with groundbreaking applications in electronics, quantum technology, optics, and industrial and medical fields.
CVD single crystal diamond properties:
Single crystal diamond CVD (chemical vapor deposition) refers to a type of diamond that is produced using the CVD process. In this process, a mixture of carbon-containing gases is decomposed under controlled conditions, resulting in the formation of a single crystal diamond layer on a substrate.
Single crystal diamond CVD is known for its exceptional hardness and thermal conductivity, which makes it useful for a range of industrial and scientific applications, such as cutting and grinding tools, heat spreaders, and optical components.
Compared to other forms of synthetic diamond, single crystal diamond CVD has a highly ordered crystal structure, which gives it improved physical and mechanical properties. This makes it a desirable material for a range of high-performance applications, where its hardness and thermal conductivity are important factors.
In summary, single crystal diamond CVD is a type of synthetic diamond that is produced using the CVD process and is characterized by its exceptional hardness and thermal conductivity. It has a wide range of applications in industries such as manufacturing, electronics, and optics.
Size Available:
| Crystal growth process: | Mono crystal CVD diamond |
| Color: | Normal grade - Near colorless, Mechanic grade - Brown |
| | 1) Regular shape, uniform size. The size can be strictly controlled according to customer needs. |
| 2) High repurchase rate and high cost performance, well received by customers. |
| 3) No visible growth lines,under 100x microscope, no black spots, no impurities, no crack. |
| 4) The stress is good, the number of times of reuse is high, and it is not easy to crac |
| Size | 7*7 8*8 9*9 10*10 11*11 12*12 13*13 14*14 Thickness: 0.05-3mm |
| Orientation: | 4pt/100 |
| Shape: | Square,Triangles, rectangles, swords |
| Lateral Dimensions Measured | to smaller side |
| Edges | Laser Cut |
| Laser Kerf | < 3° |
| Lateral Tolerance: | +0.1/-0 mm |
| Roughness, Ra | 1. Two sides polished, Ra <10- 30 nm |
| 2. One side polished, the other size is The other side is the cutting surface, or grow |
| 3.Both sides are unpolished |
Picture details:
|
|

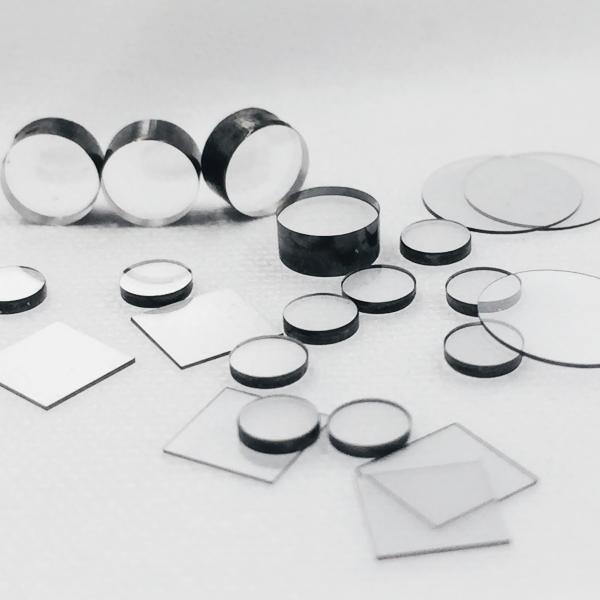

High-Purity Electronic CVD Diamond for Advanced Technological Applications Images
|
